APR ECU Upgrade** - Porsche 3.0T (992)

Driving Modes, Features, and Safety

Driving Modes - We’ve optimized boost, fueling, ignition, cams, and more to achieve greater power and torque in Normal, Sport, and Sport+ modes, while Wet-mode retains factory output levels for maximum safety, stability, and grip.

Features - In Sport Plus mode we’ve reduced turbo lag during reapplication of the throttle by building boost while off the throttle. We’ve raised the free-rev limit in neutral. We’ve optimized launch control, improving launches. The exhaust flap was recalibrated to reduce back-pressure and create turbo spool characteristics. Many other features, such as break boosting, left-foot braking, speed limiters, and more that are common modifications on other platforms are already present from the factory on this ECU.

Safety - With many customers tracking their Porsche, safety is paramount in our calibration strategy. Through the use of extreme datalogging equipment and additional sensors, thermocouples, and transducers, our engineers were able to fully optimize the ECU for advanced safety routines. This includes implementing several routines not enabled from the factory. The entire thermal management system is optimized to reduce engine bay temperature, and reduce intake air temperature, while also implementing advanced protection routines to prevent oil temperature from achieving unsafe levels. The exhaust crackles disable when temperature thresholds are crossed, and are only enabled in sport mode. Next, we help protect the engine from LSPI by preventing the engine from being lugged out in tall gears. We also protect the turbo from damaging compressor surge, and add in turboshaft overspeed protection. We’ve enabled new temperature protection routines to prevent the engine, exhaust, and other components from overheating, and have implemented temperature management strategies that are fully mindful of the platform’s limited fueling capabilities. We’ve calibrated torque delivery to be mindful of the transmission. We’ve optimized the injection strategy to not only deliver a fatter torque curve and better spool, but to reduce the chances of knock, and torque dips. This is also achieved alongside per cylinder ignition advance and fuel trimming. Serious track enthusiasts should consider running race fuel, and adding additional coolant and charge air cooling upgrades for maximum performance.

APR ECU Upgrade Stages

Our ECU Upgrades are available in multiple configurations. Installation of additional performance hardware, such as an intercooler or intake systems, may provide further performance improvements.

APR Stage 1

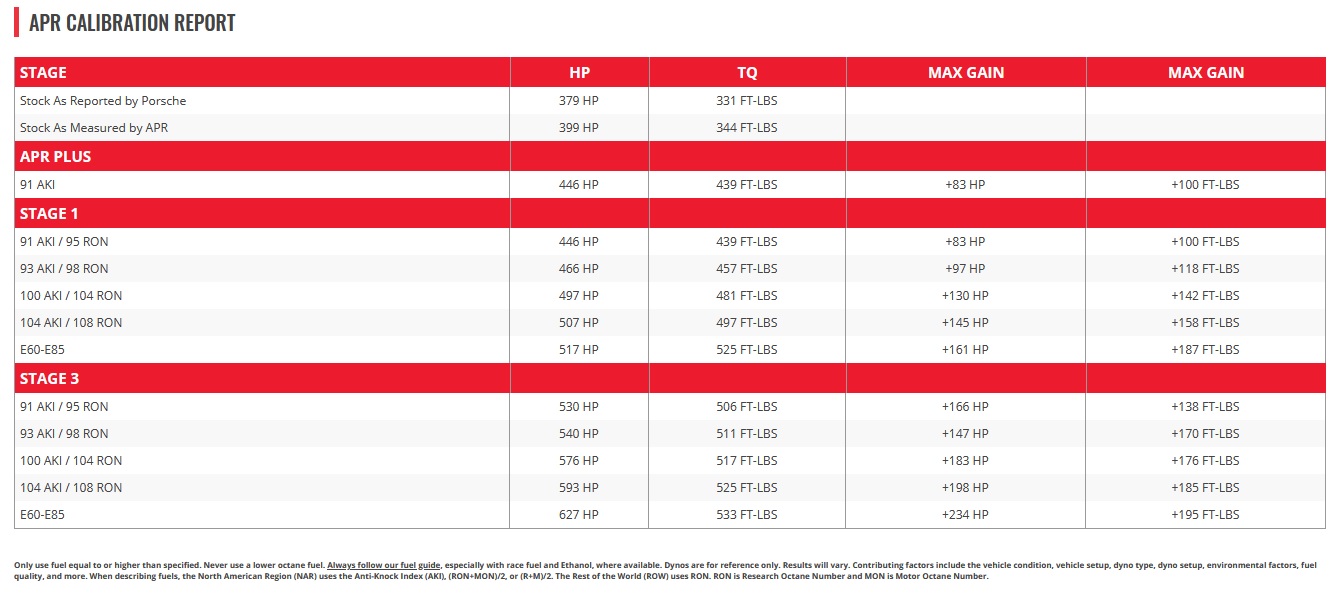

The APR Stage 1 ECU Upgrade is the first step towards tuning your engine. It produces up to 446-517 HP and 439-525 FT-LBS of torque with gains as high as +83-161 HP and +100-187 FT-LBS of torque at the wheels.

APR Stage 1 is available for 91 AKI, 93 AKI, 100 AKI, 104 AKI, and E60-E85 fuel grades in North America, and 95 RON, 98 RON, 104 RON, 108 RON, and E60-E85 in the Rest of the World.

Please note, our E85 software is not a full flex fuel program. In this mode the engine is only designed to work on E85, as found directly at the pump, including both summer and winter blends from E60-E85. Using traditional pump fuels in this mode may result in engine damage. Do not manually blend with traditional pump fuel or race fuels or use race specific barrels of E85. To ensure proper E85 content levels, APR recommends using an E85 content sensor. Before using Ethanol, educate yourself and follow our switching guide.

APR Stage 3

The APR Stage 3 ECU Upgrade is the next step towards tuning your engine. It produces up to 530-627 HP and 506-533 FT-LBS of torque with gains as high as +138-195 HP and +166-234 FT-LBS of torque at the wheels. Use this tune with the Carrera S/GTS turbochargers.

APR Stage 1 is available for 91 AKI, 93 AKI, 100 AKI, 104 AKI, and E60-E85 fuel grades in North America, and 95 RON, 98 RON, 104 RON, 108 RON, and E60-E85 in the Rest of the World.

Please note, our E85 software is not a full flex fuel program. In this mode the engine is only designed to work on E85, as found directly at the pump, including both summer and winter blends from E60-E85. Using traditional pump fuels in this mode may result in engine damage. Do not manually blend with traditional pump fuel or race fuels or use race specific barrels of E85. To ensure proper E85 content levels, APR recommends using an E85 content sensor. Before using Ethanol, educate yourself and follow our switching guide.
